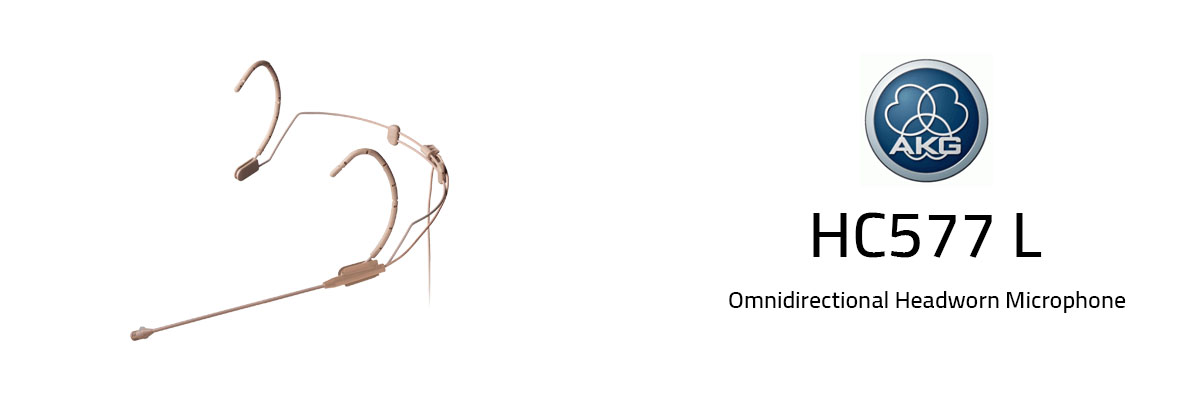

The HC577L is an extremely small reference head-worn microphone, designed for on-stage use. The microphone uses a CK77 omnidirectional transducer that has been an industry standard for lavaliere capsules for years and ensures superior audio performance. A patented body design protects the microphone from moisture and perspiration. The capsule uses the signal of two vertical diaphragms mounted back to back, mixed out of phase to cancel out mechanical and cable noise.
| Audio frequency bandwidth |
20 - 20000 Hz |
| Sensitivity |
8 mV/Pa |
| Equivalent Noise Level |
26 dB-A |
| Signal to Noise |
68 dB-A |
| Electrical impedance |
3500 Ohms |
| Recommended load impedance |
> 10000 Ohms |
| Polar Patterns |
Omnidirectional |
| Broadcast applications |
Yes |
| Lectern |
Yes |
| Recording |
Yes |
| Theater |
Yes |
| Height |
205 mm |
| Diameter |
145 mm |
| Net Weight |
28 g |
| Type |
Mini XLR |
| Gender |
Female |
| Contacts |
3-pin |
| Voltage |
1.5 to 12 V |
| Current |
0.6 mA |
