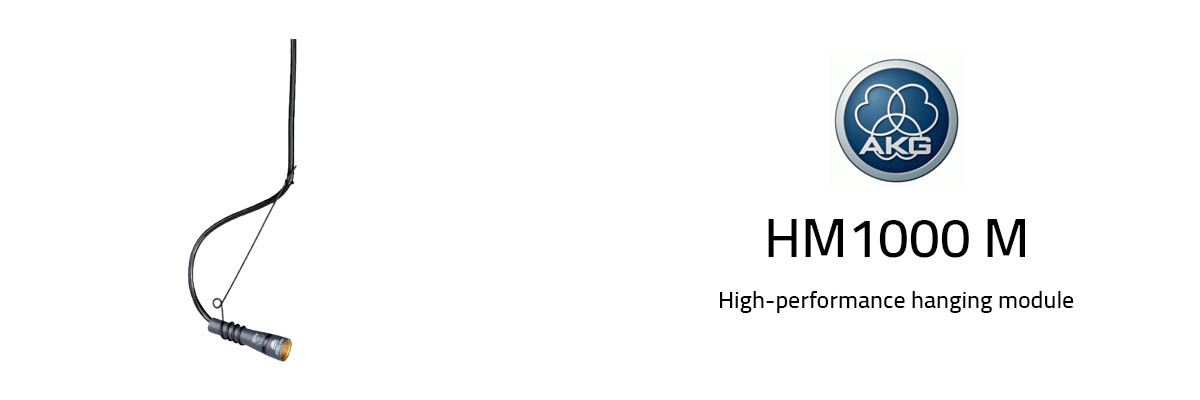

The HM1000 is used to fly microphones from the ceiling to pick up music or speech in houses of worship and conference rooms and on theater stages. The HM1000 provides a 10m (33ft) cable, specially treated to reduce twisting, even if the environment temperature varies. A spring steel hanging clamp for precise microphone alignment keeps the microphone securely in position. A switchable LED ring helps the sound engineer in monitoring system function during the soundcheck. The hanging module fits all DAM Series capsules, CK31, CK32, CK33, CK47 and CK80, via highly reliable contacts.
| Bass cut filter |
250 Hz |
| Recommended load impedance |
2000 Ohms |
| Voltage |
9 to 52 V |
| Current |
2 mA |
| Height |
50 mm |
| Diameter |
13.5 mm |
| Net Weight |
400 g |
| Type |
Balanced XLR |
| Gender |
Male |
| Contacts |
3-pin |
