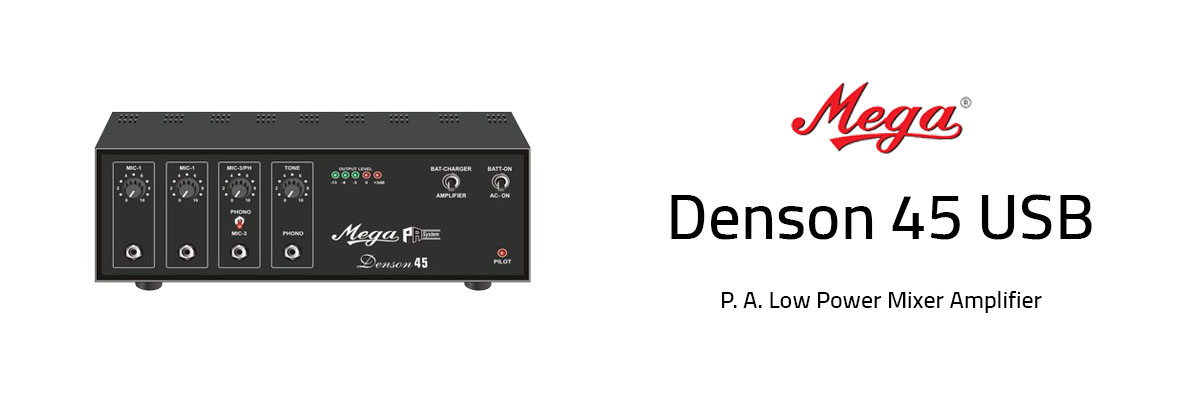

Multiple inputs for 3 Mikes / 1 Aux source, Provided with battery charging facility and External speaker connections are provided for 4, 8, 16 Ohms and 70V, 100V line
Features
- Multiple inputs for 3 Mikes / 1 Aux source.
- Tone control.
- Provided with battery charging facility.
- Multi power source amplifier: AC mains, 12V DC (car battery) and 12V DC (8 x 1.5 v UM-1 cell).
- AC / battery selector switch.
- External speaker connections are provided for 4, 8, 16 Ohms and 70V, 100V line
Specifications
| POWER REQUIREMENTS | AC 220-240 V 50/60 Hz DC 12 V ( Dry Cells UM-1) |
| POWER OUTPUT | 45 W (Max.) |
| INPUT CHANNELS | 3 Mikes 1 Aux |
| FREQUENCY RESPONSE | 100-13000 Hz ± 3dB |
| TONE CONTROL | Cut Type -10dB at 10Khz |
| SIGNAL TO NOISE RATIO | 60dB |
| PRE-AMP. OUTPUT | 200mV / 600 Ohms |
| OUTPUT TAPS FOR | 70V-100V Line |
| WEIGHT (approx.) | 6.200 Kg |
