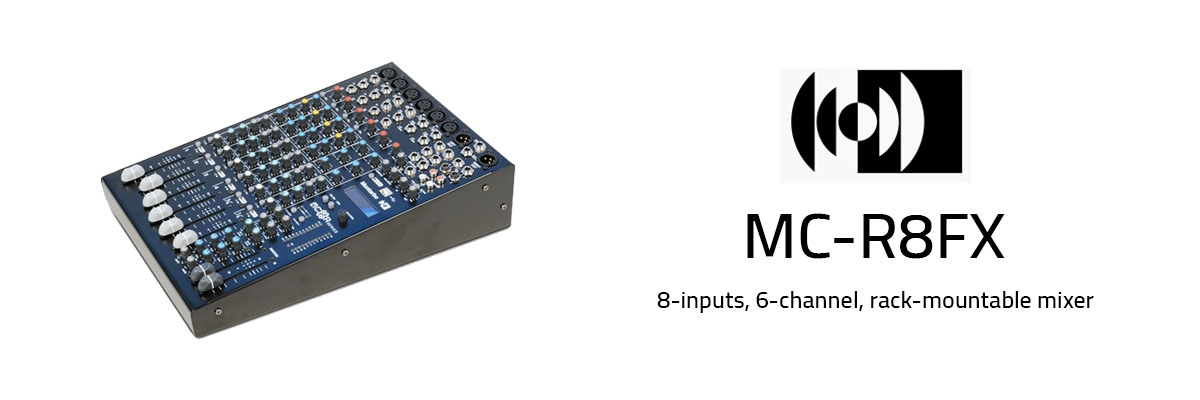

MC-R8FX stands out for its very compact size, suitable for mounting in a standard rack, using the optional adapters, the complete endowment of signal sends and returns and the practical configuration of the controls, that result in a simple and immediate utilization. Fitted with a dual Montarbo stereo effects processor, based on a powerful, latest generation, 56 bit DSP, that provide 2 x 205 high quality programs, with an uncompromized sound quality (thanks to the dual 24 bit conversion) mated with unusual ease of use.
The switch-mode power supply results in a minimal weight, and the very high efficiency minimizes the emission of heat, thus increasing the system's reliability and prolonging it's working life.
Features
- 8 inputs / 6 channels (4 mono, 2 stereo)
- The mono channels are fitted with both balanced microphone (XLR, with phantom power) and line (jack) inputs, with adjustable gain, insert, channel direct out, high-pass filter, 3-band equalizer with a semi-parametric MF control, 4 aux sends (two of which may be switched pre-post fade), pan, mute and pfl switches, peak level indicator and 60mm volume fader.
- The stereo channels are fitted with one balanced microphone (XLR) and two line (jack) inputs, with adjustable gain, 3-band equalizer, 4 aux sends (two of which may be switched pre-post fade), balance, mute and pfl switches, peak level indicator and 60 mm volume fader.
- The dual stereo multieffects processor (based on a 56-bit internal DSP and 24-bit Δ-Σ conversion) provides high performance digital audio processing combined with extremely easy operation. Each one of the two effects processors offers 205 high quality programs all carefully tailored to today's music requirements: Early, Stereo Gen, Ping Pong, Halo, Delay, Detune, Flanger, Chorus, Ambience, Chamber, Room, Hall, Cathedral, Plate, Plate Dly, Big Space, EcoRev, Concert, Live, Gate Inside a Box , Living Room, Ptc Rev, Pitch, Distance, a group of effects for specific instruments Vox - Flute - Trumpet - Sax - Brass - Keybrd - Piano - Gtr - Drum - Toms - Cymb - Hihat - Kick - Snare - Tom and the 'classic' Montarbo effects Echo, Echo+Reverb, Voice Reverb, Halo+Reverb).
- The L/R master outputs are fitted with level indicators.
- The AUX outputs are fitted with a 3-band equalizer, the EFFECT may be used as monitor sends or for external effects.
- The effect returns may be routed independently to the master and monitor outputs.
- A really useful feature will be the possibility of plugging-in an analog recorder or of using the practical USB connection to connect a personal computer, used as a digital recorder/player, and of monitoring the master output or the PFL via the headphone output with adjustable volume.
Specifications
| ELECTRONIC SPECS. | |
| Frequency Response: | 20 Hz – 20 Khz |
| Noise (20 to 20kHz) - Mic EIN ref. 150ohm | 129dBu (gain + 50dB) |
| Summing Noise | - 86dBu (all channels routed with faders down) |
| Line to Mix Noise | - 82dBu (all channels routed at 0dB, pan centre) |
| Total Harmonic Distortion (THD+N): | |
| INPUTS | |
| Mic: | 8 |
| Gain range: | +3dB - +50dB |
| Low Cut: | 75Hz – 12 dB/Oct |
| Phantom Power +48V: | si |
| Mono Line: | 8 |
| Gain range: | -7dB - +40 dB |
| Stereo Mic/Line: | 2 |
| Gain range Line: | -11dB - +20dB |
| Gain range Mic: | +9dB - +40dB |
| 2 Track: | 1 |
| Stereo Return: | 1 |
| OUTPUTS | |
| Main MIX: | 2 |
| Control Room: | 1 |
| Aux Pre/Post-Fader (Monitor) | 2 |
| Aux Post-Fader (Effects/Monitor) | 2 |
| Group Out: | no |
| Phones: | 2 |
| 2 Track: | 1 |
| COMPRESSORS | |
| Single Control: | no |
| EQ | |
| BANDS on MONO channels: | 3 bands 2 fix (HF LF) 1 variable (MF) |
| BANDS on STEREO channels: | 3 fix |
| AUXILIARY SENDS | |
| AUX: | 2 pre/post + 2 post |
| FX: | 2 |
| INTERNAL EFFECTS | |
| DSP | 56 bit |
| OTHER FEATURES | |
| Optional Card Slot: | no |
| Footswitch: | no |
| ELECTRICAL SPECS. | |
| Power supply: | |
| Power requirements: | 230V, 50-60Hz |
| Power consumption: | 25W |
| CABINET | |
| Cabinet Material: | metal |
| Colour: | black |
| PHISICAL SPECIFICATION | |
| Height: | 120 mm |
| Width: | 240 mm |
| Depth: | 400 mm |
| Net Weight: | 4.25 Kg |
